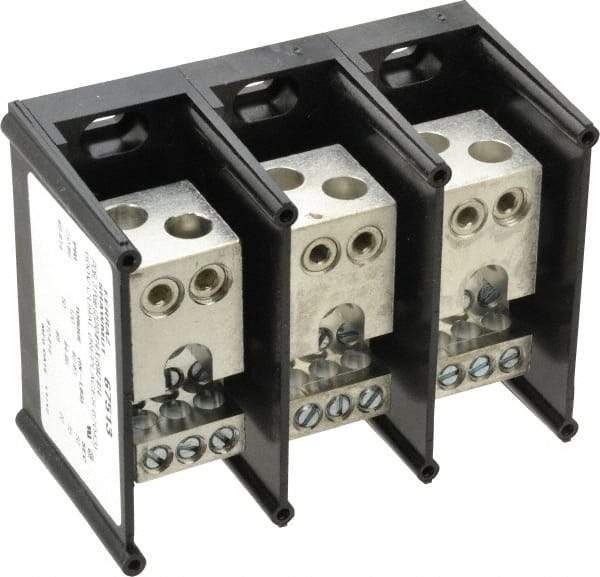

Ferraz Shawmut - 3 Poles, 270 Amp, 2/0-14 AWG Primary, 2-14 AWG Secondary, Polycarbonate Power Distribution Block - 1000 VAC/VDC, 2 Primary Connection, 5.28 Inch Long x 5 Inch Deep x 3-1/4 Inch High
Item #: 54014881
Brand: Ferraz Shawmut
Model #: 67513
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Amperage | 270 |
| Number of Poles | 3 |
| Number of Primary Connections | 2 |
| Number of Secondary Connections | 6 |
| Voltage | 1000 VAC/VDC |
| Primary Wire Range | 2/0-14 AWG |
| Secondary Wire Range | 2-14 AWG |
| Housing Material | Polycarbonate |
| Color | Black |
| Overall Height (mm) | 82.60 |
| Overall Height (Decimal Inch) | 3-1/4 |
| Overall Length (mm) | 134.10 |
| Overall Length (Decimal Inch) | 5.2800 |
| Overall Depth (mm) | 127 |
| Overall Depth (Decimal Inch) | 5 |
| Standards Met | CSA Certified; CSA Class 6228-01 Certified; RoHS Compliant; UL 94 V-0; UL Listed; UL Listed 1953 File E352417 |
