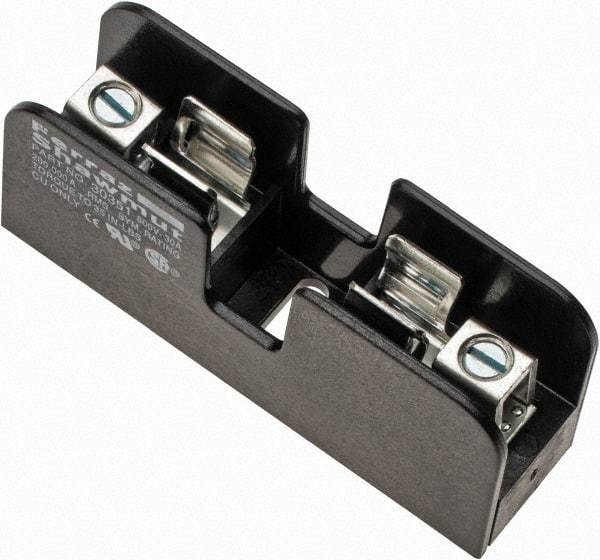

Ferraz Shawmut - 1 Pole, 14 to 6 AWG, 600 VAC/VDC, 30 Amp, DIN Rail Mount, Screw Mount Fuse Block - 13/32 Inch Diameter x 1-1/2 Inch Fuse Length, 3.04 Inch Long x 0.85 Inch Wide x 1.31 Inch High Block
Item #: 54014345
Brand: Ferraz Shawmut
Model #: 30351
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Number of Poles | 1 |
| Voltage | 600 VAC/VDC |
| Amperage | 30 |
| Wire Termination Type | Box Lug |
| Compatible Fuse Class | CC |
| Compatible Fuse Length (Inch) | 1-1/2 |
| Mounting Type | DIN Rail Mount; Screw Mount |
| Compatible Fuse Diameter (Inch) | 13/32 |
| Block Length (Decimal Inch) | 3.0400 |
| Block Width (Decimal Inch) | 0.8500 |
| Block Height (Decimal Inch) | 1.3100 |
| Compatible Wire Size (AWG) | 14-6 |
| Standards Met | CSA Class 6225 File 32169 Certified; UL 4248; UL Recognized Component Guide IZLT2 File E52283 |
