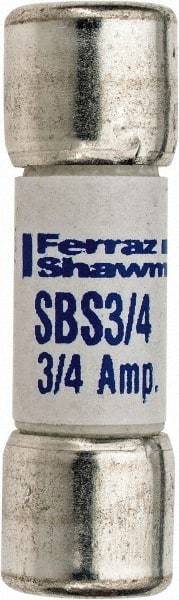

Ferraz Shawmut - 600 VAC, 0.75 Amp, Fast-Acting Ferrule Fuse - Clip Mount, 1-3/8" OAL, 100 at AC kA Rating, 13/32" Diam
Item #: 54013883
Brand: Ferraz Shawmut
Model #: SBS3/4
Exact Tooling IR#: 04
Features and Benefits
Ferrule fuses, sometimes called cylindrical fuses, are used for low power applications where space is limited.
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | Ferrule |
| Amperage (mA) | 750 |
| Amperage | 0.75 |
| Voltage | 600 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 34.90 |
| Overall Length (Inch) | 1-3/8 |
| Overall Length (Decimal Inch) | 1.3800 |
| Overall Diameter (mm) | 10.30 |
| Overall Diameter (Inch) | 13/32 |
| Overall Diameter (Decimal Inch) | 0.4100 |
| Material | Fiberglass; GMG |
| Mounting Type | Clip |
| Rejection Setting | NonRejecting |
| Interrupting Rating (kA) | 100 @ AC |
| Standards Met | CSA C22.2 No. 248.14 Certified; UL Listed 248-14 File E33925 |
