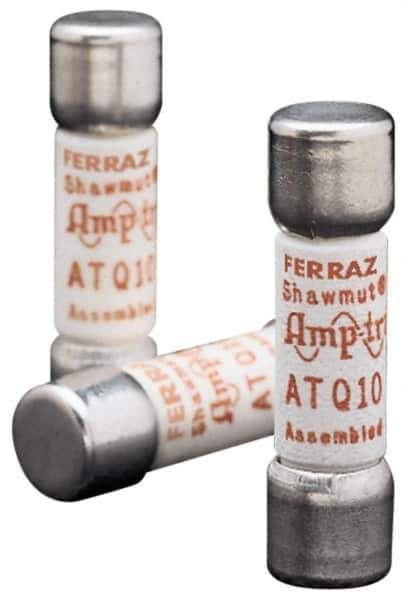

Ferraz Shawmut - 500 VAC, 0.1 Amp, Time Delay General Purpose Fuse - Clip Mount, 1-1/2" OAL, 10 at AC kA Rating, 13/32" Diam
Item #: 54013438
Brand: Ferraz Shawmut
Model #: ATQ1/10
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Amperage (mA) | 100 |
| Amperage | 0.10 |
| Voltage | 500 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Diameter (mm) | 10.30 |
| Overall Diameter (Inch) | 13/32 |
| Overall Diameter (Decimal Inch) | 0.4100 |
| Material | GMG |
| Mounting Type | Clip |
| Rejection Setting | NonRejecting |
| Interrupting Rating (kA) | 10 @ AC |
| Standards Met | CSA C22.2 No. 248.14 Certified; UL Listed 248-14 File E33925 |
