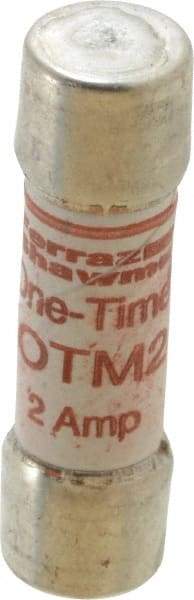

Ferraz Shawmut - 250 VAC, 2 Amp, Fast-Acting General Purpose Fuse - Clip Mount, 1-1/2" OAL, 10 at AC kA Rating, 13/32" Diam
Item #: 54012760
Brand: Ferraz Shawmut
Model #: OTM2
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Amperage | 2 |
| Voltage | 250 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Diameter (mm) | 10.40 |
| Overall Diameter (Inch) | 13/32 |
| Overall Diameter (Decimal Inch) | 0.4100 |
| Material | Paper |
| Mounting Type | Clip |
| Rejection Setting | NonRejecting |
| Interrupting Rating (kA) | 10 @ AC |
| Standards Met | CSA C22.2 No. 248.14 Certified; UL Listed 248-14 File E33925 |
