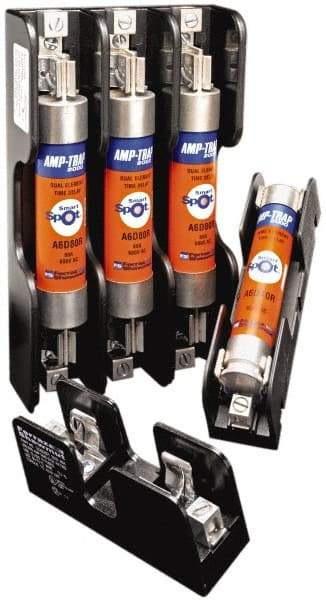

Ferraz Shawmut - 1 Pole, 10 to 14 AWG, 250/600 VAC/VDC, 30 Amp, Screw Mount Fuse Block - 5/16 Inch Diameter x 7 Inch Long x 1.63 Inch Wide x 2 Inch High Block
Item #: 54010749
Brand: Ferraz Shawmut
Model #: 60326
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Number of Poles | 1 |
| Voltage | 250/600 VAC/VDC |
| Amperage | 30 |
| Wire Termination Type | Pressure Plate |
| Compatible Fuse Class | H; K |
| Mounting Type | Screw Mount |
| Compatible Fuse Diameter (Inch) | 5/16 |
| Block Length (Decimal Inch) | 7 |
| Block Width (Decimal Inch) | 1.6300 |
| Block Height (Decimal Inch) | 2 |
| Compatible Wire Size (AWG) | 10-14 |
| Standards Met | CSA Class 6225 File 32169 Certified; UL 4248; UL Listed Guide IZLT File E52283; UL Recognized Guide IZLT2 File E52283 |
