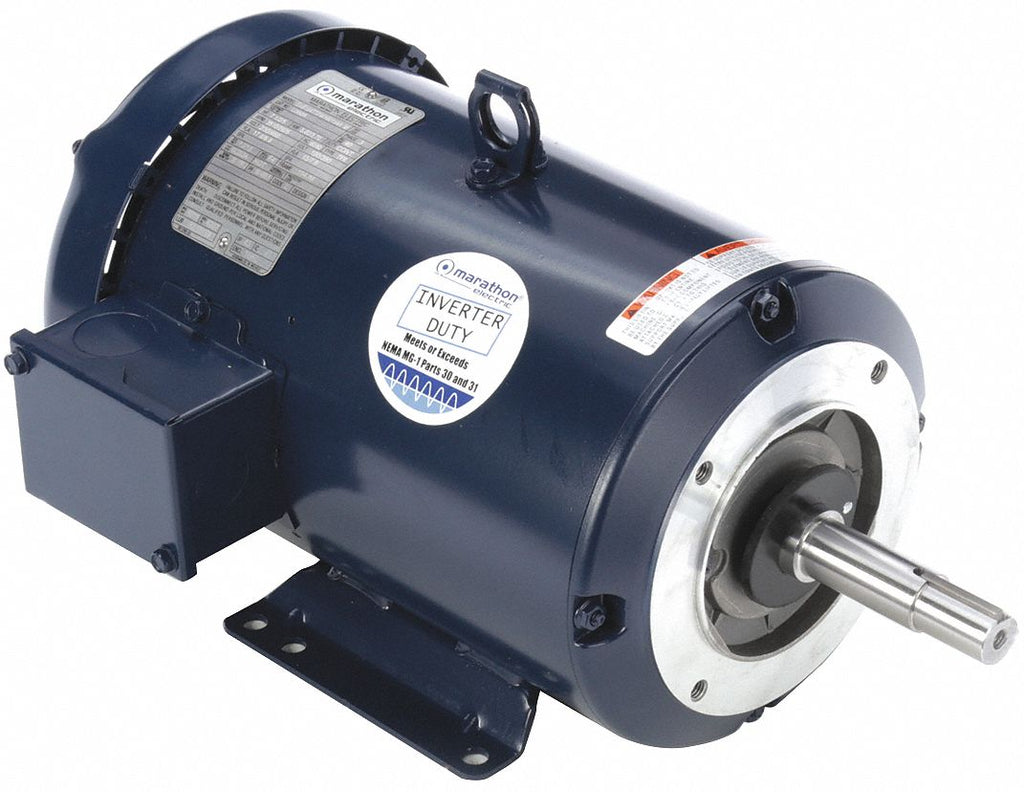

7-1/2 HP Close-Coupled Pump Motor,3-Phase,3510 Nameplate RPM,230/460 Voltage,184JM
Item #: 53DG16
Brand: MARATHON MOTORS
Supplier #: 184TTFW16015
Exact Tooling IR#: 08
| Product Specifications | |
|---|---|
| Item | Close-Coupled Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Close-Coupled Pump |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 7-1/2 |
| Nameplate RPM | 3510 |
| Frame | 184JM |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 230/460 |
| Full Load Amps | 17.6/8.8 |
| Phase | 3 |
| Hz | 60/50 |
| Motor Mounting Type | Face/Base |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.00 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 7/8" |
| Shaft Length | 4-1/4" |
| Motor Shaft Design | Keyed and Drilled On Center |
| Length Less Shaft | 13-15/16" |
| Overall Length | 18-1/16" |
| Ins. Class | F |
| Duty | Continuous |
| Nominal Efficiency | 91.7% |
| CC Number | CC003A |
| Motor Efficiency Group | NEMA Premium Efficient |
| Inverter Rated | No |
| Standards | UL (E49747), CSA (LR2025), CE Approved |
| UNSPSC # | 26101612 |
| Country of Origin | Mexico |
