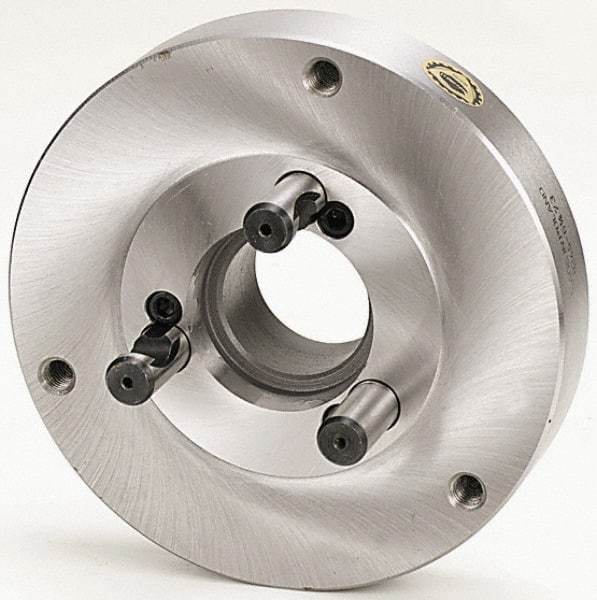

Buck Chuck Company - Adapter Back Plate for 10" Diam Self Centering Lathe Chucks - L-00 Mount, 2-3/4" Through Hole Diam, 7.858mm ID, 10" OD, 0.911" Flange Height, Steel
Item #: 53988093
Brand: Buck Chuck Company
Model #: A10-L00
Exact Tooling IR#: 04
Features and Benefits
Steel is made up of an iron and carbon. It offers high tensile strength and corrosion resistance, but may offer some vibration during an operation.
| Product Specifications | |
|---|---|
| Nominal Chuck Size | 10 |
| Spindle Nose Type | L Series |
| Mount | L-00 |
| Chuck Compatibility | Self-Centering Chucks |
| Through-Hole Diameter (Decimal Inch) | 2.7500 |
| Chuck Diameter Compatibility (Inch) | 10 |
| Inside Diameter (Decimal Inch) | 7.8580 |
| Outside Diameter (Inch) | 10 |
| Outside Diameter (Decimal Inch) | 10.0000 |
| Flange Height (Decimal Inch) | 0.9110 |
| Material | Steel |
