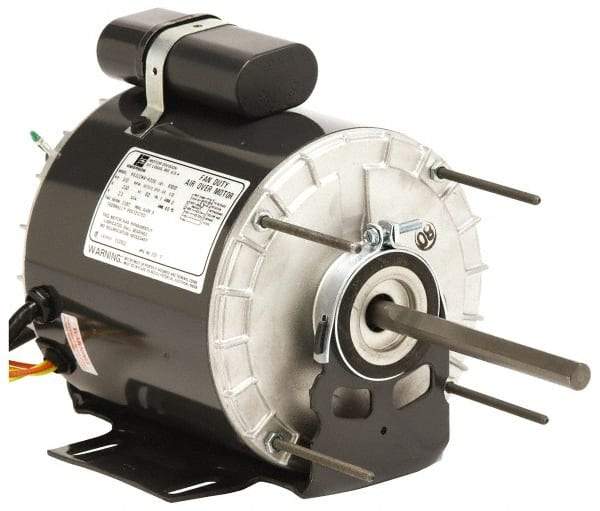

US Motors - 3/4 hp, TENV Enclosure, Auto Thermal Protection, 1,075 RPM, 230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56 Frame, Resilient Mount, 2 Speed, Ball Bearings, 3.7 Full Load Amps, A Class Insulation, Reversible
Item #: 53655155
Brand: US Motors
Model #: 1811
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TENV |
| Horsepower | 3/4 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1075 |
| Voltage | 230 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | Resilient |
| Number of Speeds | 2 |
| Bearing Type | Ball |
| Full Load Amperage | 3.7 |
| Insulation Class | A |
| Shaft Diameter x Length (Inch) | 1/2 x 5 |
| Full Load Efficiency Rating | 77.10 |
| Motor Run Capacitor Micro Farid | 12.50 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
