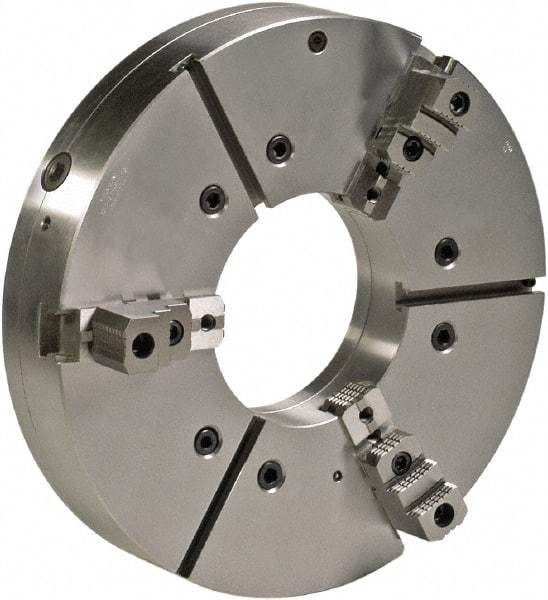

Bison - 3 Jaws, 25" Diam, Self Centering, Manual, Heavy Duty Oil Country Lathe Chuck - A2-20 Mount Spindle, Adjustable, 555 Max RPM, 15.55" Through Hole Diam, Forged Steel
Item #: 53553178
Brand: Bison
Model #: 7-825-2520
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Forged steel or steel chucks have greater accuracy, less wear and can be operated at higher RPM's.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 25 |
| Number of Jaws | 3 |
| Mount | A2-20 |
| Through-Hole Diameter (Decimal Inch) | 12.5500 |
| Body Material | Forged Steel |
| Adjustable | Yes |
| Maximum RPM | 555 |
