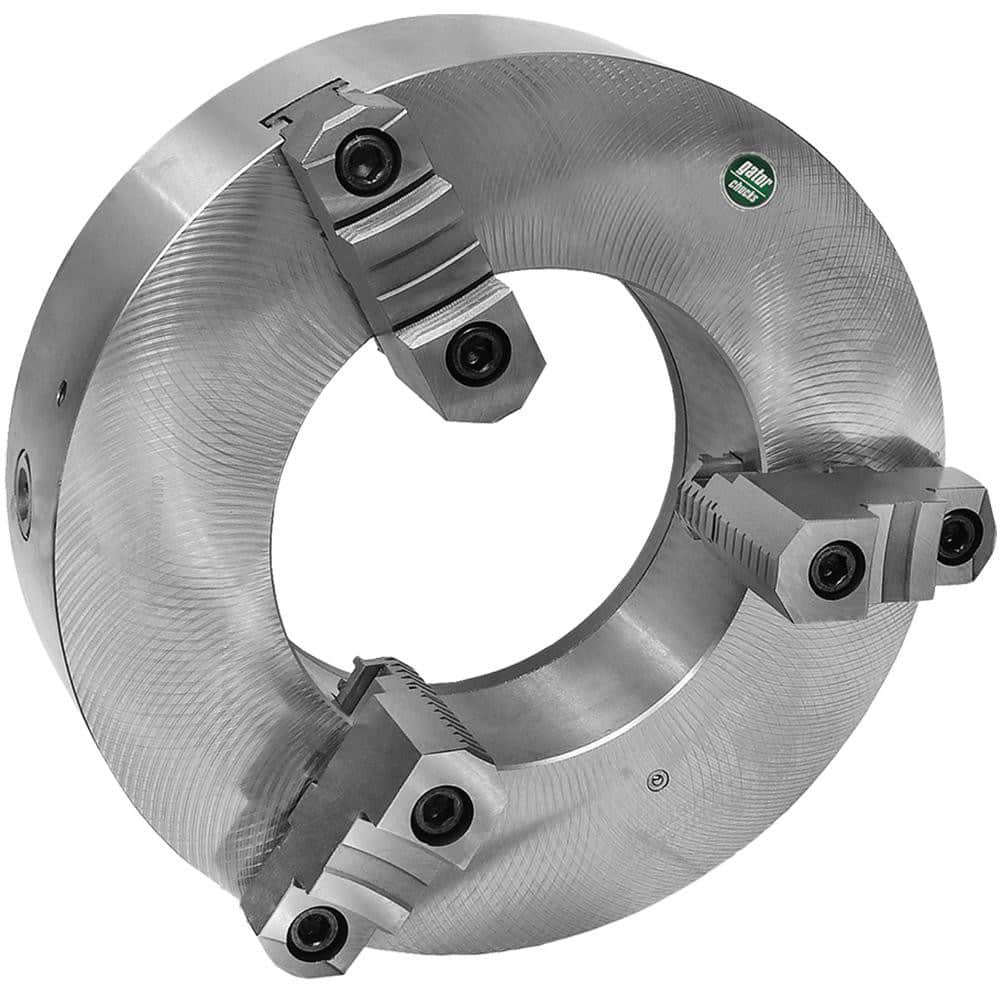

Self-Centering Manual Lathe Chuck: 3-Jaw, 16″ Dia Two-Piece Jaws, Plain Back Mount, 500 Max RPM
Item #: 53428884
Brand: Gator Lathe Chucks
Model #: 1-207-1600
Product Specifications
| Chuck Type | Self-Centering |
| Material | Forged Steel |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 8.6600 |
| Chuck Diameter (Decimal Inch) | 16.0000 |
| Chuck Diameter (Inch) | 16 |
| Minimum Jaw Capacity (Inch) | 5.1200 |
| Minimum Jaw Capacity (mm) | 5.12 |
| Maximum Jaw Capacity (mm) | 15.75 |
| Maximum Jaw Capacity (Inch) | 15.7500 |
| Jaw Height (Decimal Inch) | 2.9724 |
| Maximum Rpm | 500 |
| Mount Type | Plain Back |
| TIR Repeatability (Decimal Inch) | 0.0024 |
| Number Of Jaws | 3 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Adapter Mounting Bolts; Eye Bolts; Chuck Wrench; Hex Keys |
