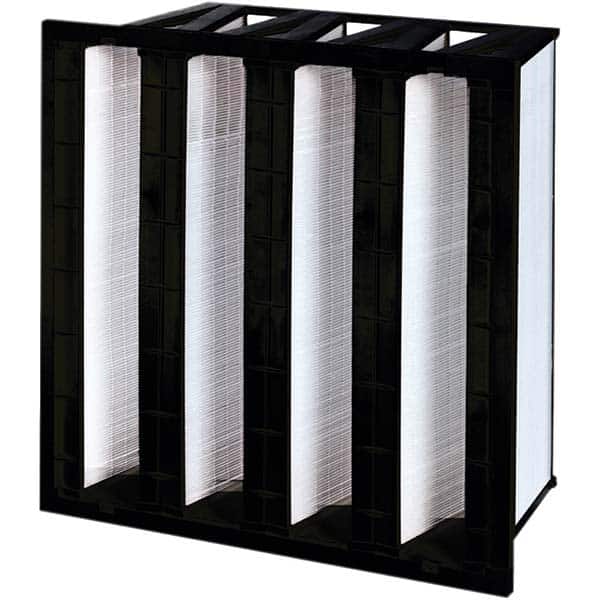

PRO-SOURCE - Pleated & Panel Air Filters Filter Type: V-Bank Mini-Pleat Nominal Height (Inch): 12
Item #: 14273171
Brand: PRO-SOURCE
Model #:
Product Specifications
Pleated & Panel Air Filters; Filter Type: V-Bank Mini-Pleat ; Nominal Height (Inch): 12 ; Nominal Width (Inch): 24 ; Nominal Depth (Inch): 12 ; MERV Rating: 15 ; Media Material: Synthetic
| Filter Type | V-Bank Mini-Pleat |
| Nominal Height (Inch) | 12 |
| Nominal Width (Inch) | 24 |
| Nominal Depth (Inch) | 12 |
| MERV Rating | 15 |
| Media Material | Synthetic |
| Integrated Frame | Yes |
| Actual Height (Decimal Inch) | 11.380 |
| Actual Width (Decimal Inch) | 23.380 |
| Actual Depth (Inch) | 11.5 |
| Maximum Air Flow (FPM) | 750 |
| CFM | 1250 |
| Initial Resistance at FPM (Inches w.g.) | 0.19 (at 375 FPM); 0.28 (at 500 FPM); 0.38 (at 625 FPM) |
| Final Resistance at FPM (Inches w.g.) | 2 |
| Maximum Temperature (F) | 150.000 |
| Frame Material | Plastic |
| Standards Met | UL 900 |
