Cleveland - #46 118° High Speed Steel Jobber Drill - Exact Tool & Supply

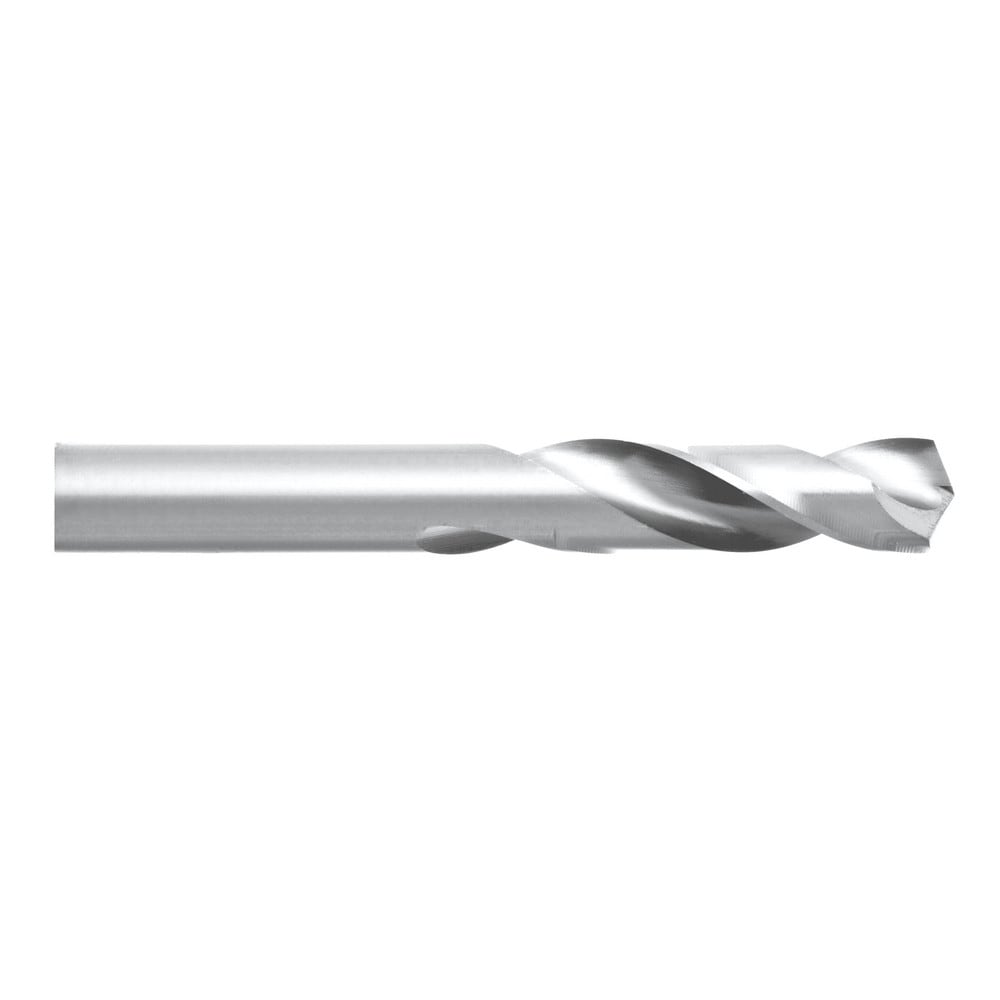

Cleveland - #46 118° High Speed Steel Jobber Drill


Item #: 63701460
Brand: Cleveland
Model #: C03495

Features and Benefits

High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
Product Specifications
Drill Bit Size (Wire) #46
Drill Bit Size (Decimal Inch) 0.0810
Drill Point Angle 118
Drill Bit Material High Speed Steel
Drill Bit Finish/Coating Bright
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Coolant Through No
Flute Length (Inch) 1-1/8
Overall Length (Inch) 2-1/8
Point Type Standard
Shank Diameter (Decimal Inch) 0.0810
Spiral Type Slow Spiral
Web Configuration Tapered
Drill Bit Diameter Tolerance (Decimal Inch) -0.0005 to 0.0000
Web Thinning Web-Thinned
Drill Bit Grade General Purpose
Series/List 2020
$3.68
