DORMER - 9/32" 118° High Speed Steel Jobber Drill - Exact Tool & Supply

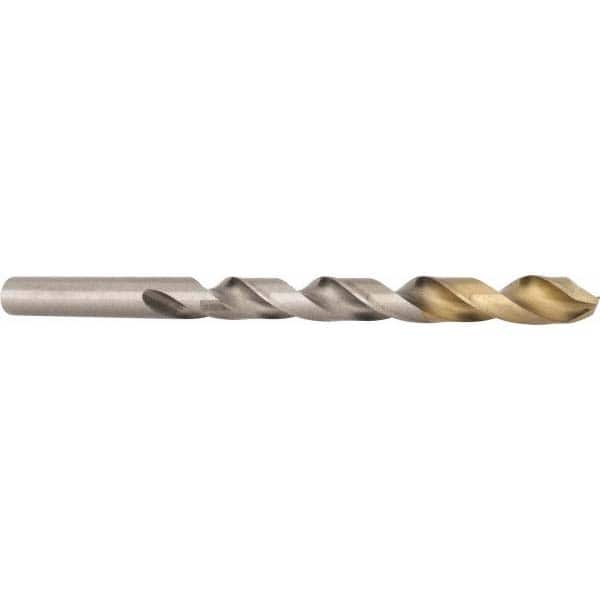

DORMER - 9/32" 118° High Speed Steel Jobber Drill


Item #: 02428704
Brand: DORMER
Model #: 0572207

Features and Benefits

High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
Product Specifications
Drill Bit Size (Inch) 9/32
Drill Bit Size (Decimal Inch) 0.2812
Drill Point Angle 118
Drill Bit Material High Speed Steel
Drill Bit Finish/Coating TiN
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Coolant Through No
Flute Length (Inch) 2-15/16
Overall Length (Inch) 4-1/4
Point Type Split Point
Shank Diameter (Decimal Inch) 0.2812
Spiral Type Regular Spiral
Specification Designation ANSI
Web Configuration Tapered
Web Thinning Web-Thinned
Drill Bit Grade General Purpose
Series/List A012
$6.22
