OSG - 2.36mm, 140° Point, Solid Carbide Micro Drill Bit - Exact Tool & Supply

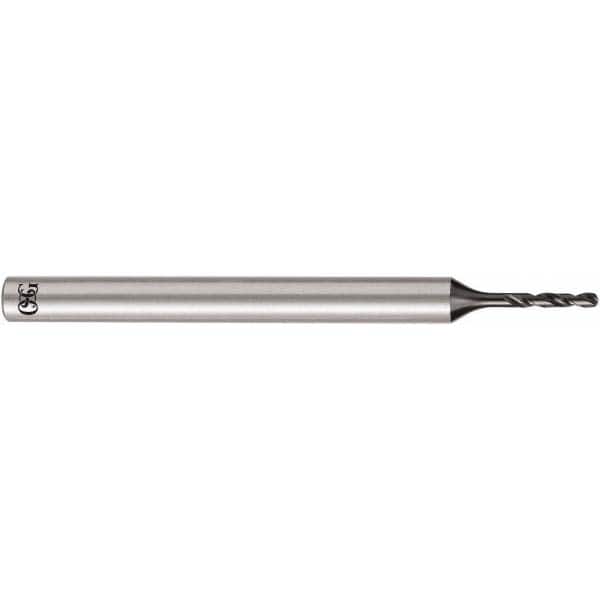

OSG - 2.36mm, 140° Point, Solid Carbide Micro Drill Bit


Item #: 48829196
Brand: OSG
Model #: 48172236

Features and Benefits

Solid carbide provides better rigidity than High Speed Steel (HSS). It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature than TiN. As a result, it is better for higher speed operations in a variety of steel machining applications.
Product Specifications
Drill Bit Size (Decimal Inch) 0.0929
Drill Bit Size (mm) 2.36
Shank Diameter (mm) 3
Drill Point Angle 140
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating TiAlN
Cutting Direction Right Hand
Overall Length (mm) 50
Flute Length (mm) 13.00
Through Coolant No
Point Type Four Facet
Series/List 5330
$34.11
