Walter-Titex - 3.6mm 140° Solid Carbide Jobber Drill - Exact Tool & Supply

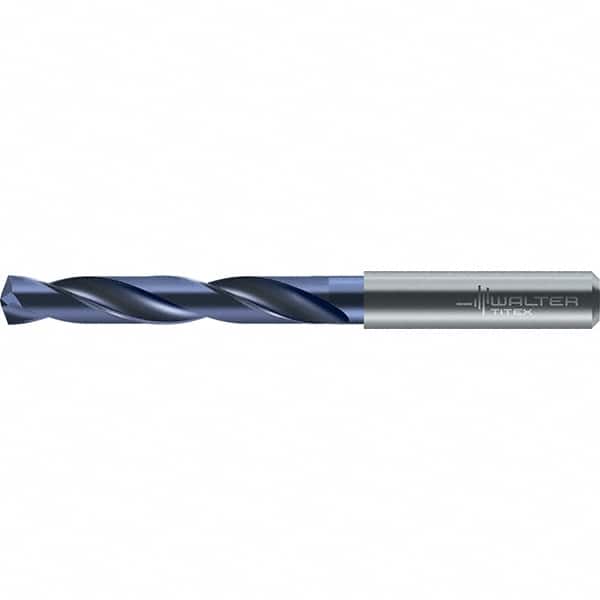

Walter-Titex - 3.6mm 140° Solid Carbide Jobber Drill


Item #: 16563843
Brand: Walter-Titex
Model #: 7462068

Features and Benefits

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Tinal is extremely wear resistant coating when used at high temperatures and speeds in a wide range of high strength applications. It is commonly used on steel, cast iron and non-ferrous metal. Tinal is a proprietary coating exclusive to Walter Titex.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
Product Specifications
Drill Bit Size (mm) 3.60
Drill Bit Size (Decimal Inch) 0.1417
Drill Point Angle 140
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating TiNAl
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Coolant Through No
Flute Length (mm) 28.00
Overall Length (mm) 66.00
Flute Length x Diameter Ratio 5xD
Shank Diameter (mm) 6.00
Maximum Drilling Depth (mm) 23.00
Drill Point Length (mm) 0.66
Number of Flutes 2
Material Grade WJ30TA
Series/List DC150
