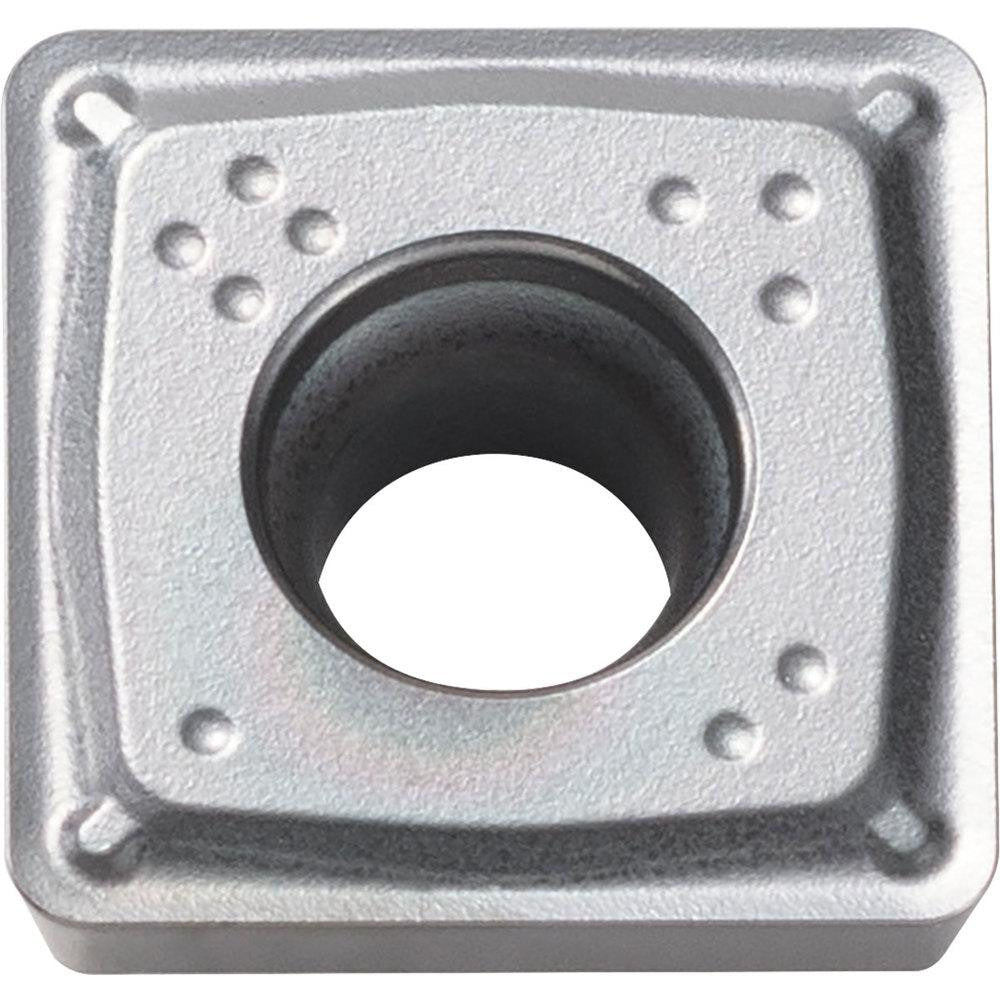

Milling Insert: SPMT090308EN-GM PR1810, Carbide
Item #: 01099548
Brand: Kyocera
Model #: TLS00169
Product Specifications
| Insert Style | SPMT |
| Insert Size | 090308 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | PR1810 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (mm) | 3.1800 |
| Coating/Finish | MEGACOAT NANO EX |
| Insert Size Code | 090308 |
| Inscribed Circle (mm) | 9.53 |
| Insert Hand | Neutral |
| Series | MEF |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.4000 |
| Rake | Positive |
| Primary Workpiece Material | Nodular Cast Iron; Gray Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SPMT090308ENGMPR1810 |
| Iso Code | SPMT090308EN-GM |
| Standards | PR1810 |
| Manufacturers Catalog Number | SPMT090308ENGMPR1810 |
| Chip Breaker | EN-GM |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Multi-Use Tool | Yes |
