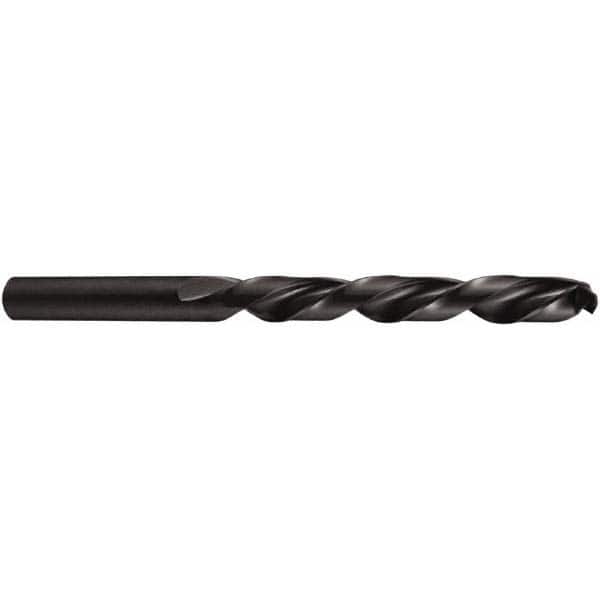

DORMER - 5.5mm 118° High Speed Steel Jobber Drill
Item #: 80977770
Brand: DORMER
Model #: 0003022
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Oxide prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
Product Specifications | |
---|---|
Drill Bit Size (mm) | 5.50 |
Drill Bit Size (Decimal Inch) | 0.2165 |
Drill Point Angle | 118 |
Drill Bit Material | High Speed Steel |
Drill Bit Finish/Coating | Oxide |
Flute Type | Spiral |
Cutting Direction | Left Hand |
Shank Type | Straight |
Coolant Through | No |
Flute Length (mm) | 57.00 |
Flute Length (Decimal Inch) | 2.2458 |
Overall Length (mm) | 93.00 |
Overall Length (Decimal Inch) | 3.6642 |
Flute Length x Diameter Ratio | 4xD |
Spiral Type | Regular Spiral |
Specification Designation | DIN |
Web Configuration | Tapered |
Drill Bit Diameter Tolerance (mm) | 0.000 to -0.018 |
Number of Flutes | 2 |
Web Thinning | Web-Thinned |
Specification Number | DIN 338 |
Material Grade | M2 |
Series/List | A101 |
