Guhring - 11/32" 140° Solid Carbide Jobber Drill - Exact Tool & Supply

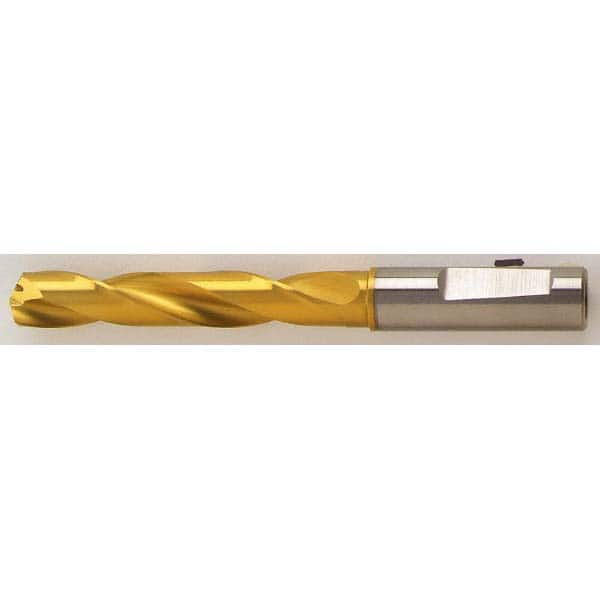

Guhring - 11/32" 140° Solid Carbide Jobber Drill


Item #: 05938741
Brand: Guhring
Model #: 9011830087300

Features and Benefits

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
Product Specifications
Drill Bit Size (Inch) 11/32
Drill Bit Size (Decimal Inch) 0.3438
Drill Point Angle 140
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating TiN
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Whistle Notch
Coolant Through Coolant Through
Flute Length (mm) 61.00
Overall Length (mm) 103.00
Flute Length x Diameter Ratio 5xD
Point Type SU Point
Shank Diameter (Decimal Inch) 0.3937
Spiral Type Regular Spiral
Shank Length (Decimal Inch) 1.6535
Specification Designation DIN
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) 0.006 to 0.021
Web Thinning Web-Thinned
Specification Number DIN 6537L
Material Grade Submicron
Series/List 1183
$177.86
