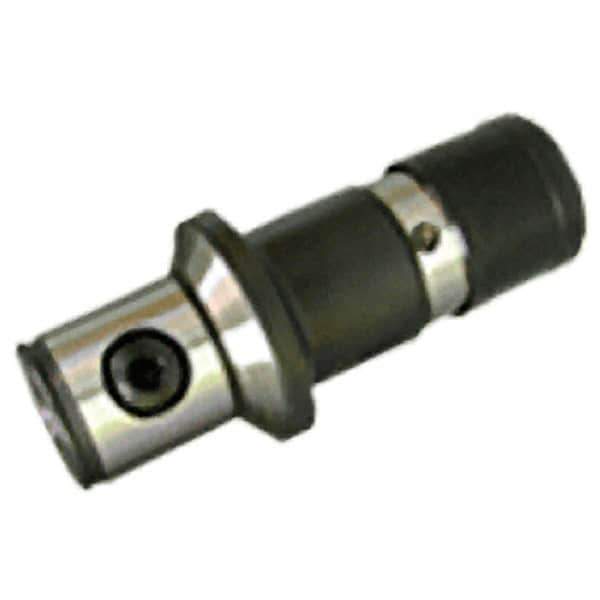

Iscar - MB50 Modular Connection Tapping Chuck/Holder - M3 to M12 Tap Capacity, 72mm Projection
Item #: 52740511
Brand: Iscar
Model #: 4550201
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single tap chucks to accept various tap shank diameters without changing machine tool holding set-ups.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | MB50 |
| Minimum Tap Capacity (mm) | M3 |
| Maximum Tap Capacity (mm) | M12 |
| Projection (Decimal Inch) | 2.8346 |
| Projection (mm) | 72.00 |
| Quick Change | No |
| Hole Diameter (mm) | 19.00 |
| Hole Diameter (Decimal Inch) | 0.7480 |
| Nose Diameter (mm) | 36.00 |
| Nose Diameter (Decimal Inch) | 1.4173 |
| Through Coolant | No |
