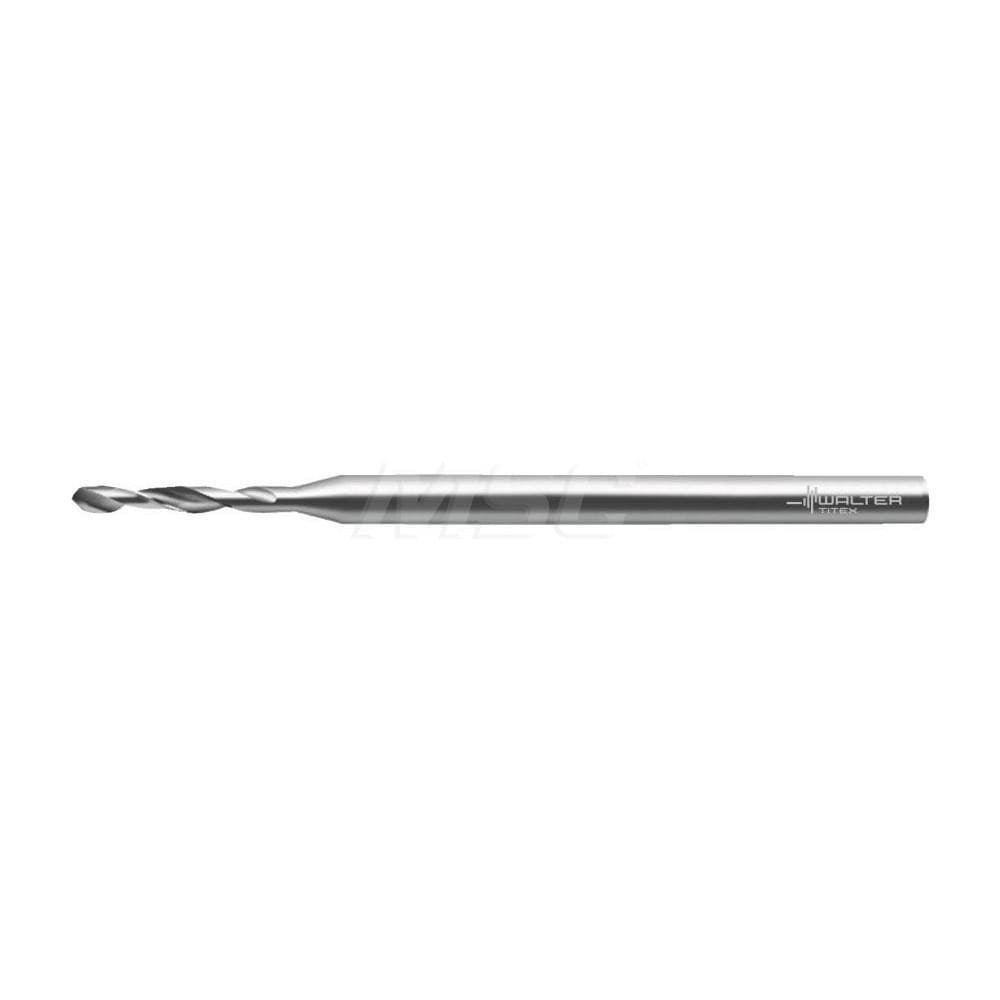

Micro Drill Bit: 0.0240" Dia, 118 deg, Solid Carbide
Item #: 11178225
Brand: Walter-Titex
Model #: 7233444
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0240 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 4.20 |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Drill Point Angle | 118 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 3.00 |
| Series | DB130 Advance |
| Overall Length (mm) | 25.00 |
| Shank Type | Straight-Cylindrical |
| Tool Application | Through Hole Drilling; Blind Hole; Stack Drilling |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance | +0.000 to (+0.004) mm |
| Primary Workpiece Material | Alloy; Titanium Alloy |
| Primary Workpiece Material Code | P; S; K; M; N; O |
| Standards | DIN 1899 |
| Shank Diameter (mm) | 1.00 |
| Flute By Diameter Ratio | 5xD |
| UNSPSC Code | 23241600 |
