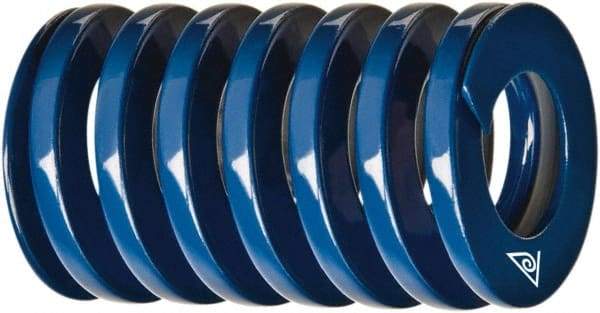

Associated Spring Raymond - 2-1/2" Hole Diam, 1-1/2" Rod Diam, 3" Free Length, Blue Die Spring - 2293 Lb Max Deflection, 1.3228" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 52385390
Brand: Associated Spring Raymond
Model #: 304-912-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2-1/2 |
| Rod Diameter (Inch) | 1-1/2 |
| Free Length (Inch) | 3 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 10199.80 |
| Maximum Deflection Load (Lb.) | 2293.00 |
| Maximum Deflection (mm) | 33.60 |
| Maximum Deflection (Decimal Inch) | 1.3228 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
