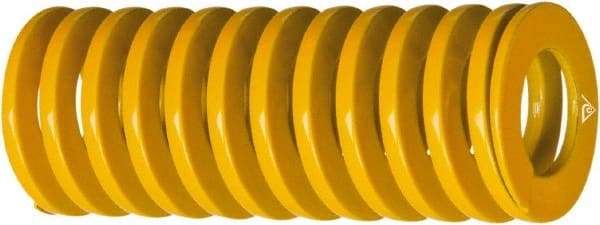

Associated Spring Raymond - 2-1/2" Hole Diam, 1-1/2" Rod Diam, 7" Free Length, Yellow Die Spring - 3627 Lb Max Deflection, 1.6543" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 52384781
Brand: Associated Spring Raymond
Model #: 306-928-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2-1/2 |
| Rod Diameter (Inch) | 1-1/2 |
| Free Length (Inch) | 7 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (N) | 16133.70 |
| Maximum Deflection Load (Lb.) | 3627.00 |
| Maximum Deflection (mm) | 42.02 |
| Maximum Deflection (Decimal Inch) | 1.6543 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
