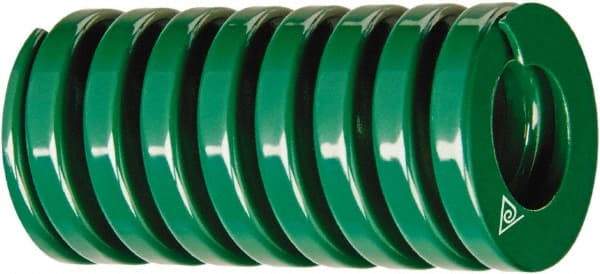

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 8" Free Length, Green Die Spring - 1154 Lb Max Deflection, 4.8347" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52382835
Brand: Associated Spring Raymond
Model #: 303-832-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 8 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 5133.25 |
| Maximum Deflection Load (Lb.) | 1154.00 |
| Maximum Deflection (mm) | 122.80 |
| Maximum Deflection (Decimal Inch) | 4.8347 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
