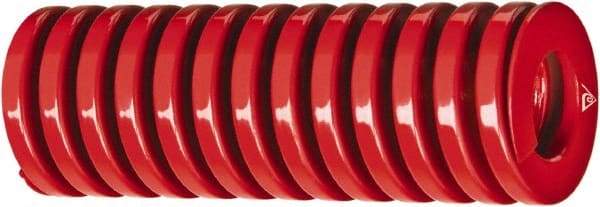

Associated Spring Raymond - 2-1/2" Hole Diam, 1-1/2" Rod Diam, 9" Free Length, Red Die Spring - 2214 Lb Max Deflection, 3.374" Max Deflection, Heavy Duty, Chromium Alloy Steel
Item #: 52382082
Brand: Associated Spring Raymond
Model #: 305-936-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2-1/2 |
| Rod Diameter (Inch) | 1-1/2 |
| Free Length (Inch) | 9 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (N) | 9848.36 |
| Maximum Deflection Load (Lb.) | 2214.00 |
| Maximum Deflection (mm) | 85.70 |
| Maximum Deflection (Decimal Inch) | 3.3740 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
