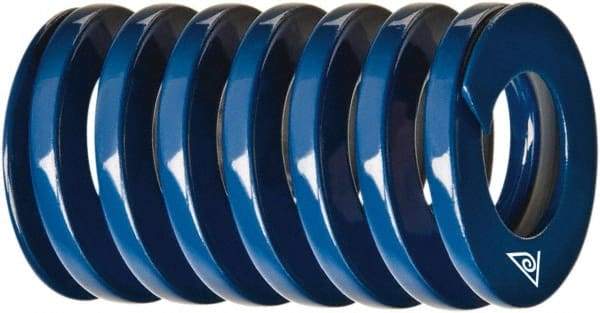

Associated Spring Raymond - 2-1/2" Hole Diam, 1-1/2" Rod Diam, 6" Free Length, Blue Die Spring - 1976 Lb Max Deflection, 2.6142" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 52380219
Brand: Associated Spring Raymond
Model #: 304-924-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2-1/2 |
| Rod Diameter (Inch) | 1-1/2 |
| Free Length (Inch) | 6 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 8789.69 |
| Maximum Deflection Load (Lb.) | 1976.00 |
| Maximum Deflection (mm) | 66.40 |
| Maximum Deflection (Decimal Inch) | 2.6142 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
