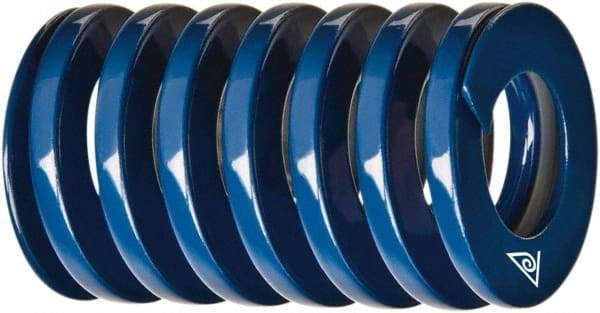

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 7" Free Length, Blue Die Spring - 1114 Lb Max Deflection, 2.9606" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 52380029
Brand: Associated Spring Raymond
Model #: 304-828-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 7 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 4955.32 |
| Maximum Deflection Load (Lb.) | 1114.00 |
| Maximum Deflection (mm) | 75.20 |
| Maximum Deflection (Decimal Inch) | 2.9606 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
