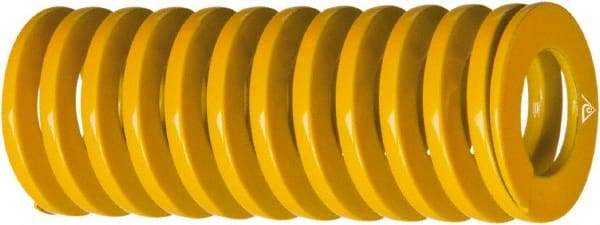

Associated Spring Raymond - 3/4" Hole Diam, 3/8" Rod Diam, 4-1/2" Free Length, Yellow Die Spring - 409 Lb Max Deflection, 1.189" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 52379591
Brand: Associated Spring Raymond
Model #: 306-418-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 3/4 |
| Rod Diameter (Inch) | 3/8 |
| Free Length (Inch) | 4-1/2 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (N) | 1819.32 |
| Maximum Deflection Load (Lb.) | 409.00 |
| Maximum Deflection (mm) | 30.20 |
| Maximum Deflection (Decimal Inch) | 1.1890 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
