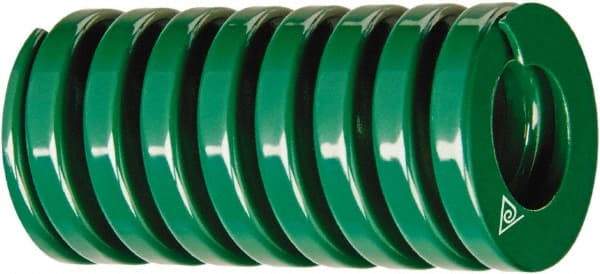

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 7" Free Length, Green Die Spring - 1185 Lb Max Deflection, 4.2677" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52378031
Brand: Associated Spring Raymond
Model #: 303-828-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 7 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 5271.14 |
| Maximum Deflection Load (Lb.) | 1185.00 |
| Maximum Deflection (mm) | 108.40 |
| Maximum Deflection (Decimal Inch) | 4.2677 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
