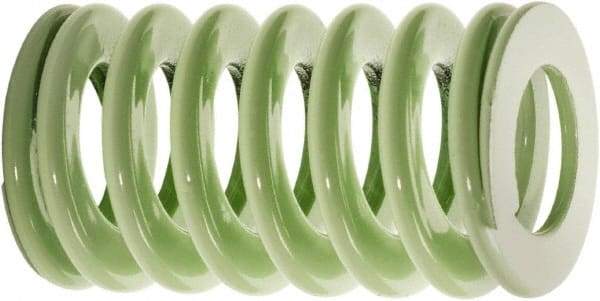

Associated Spring Raymond - 2" Hole Diam, 1" Rod Diam, 8" Free Length, Light Green Die Spring - 759 Lb Max Deflection, 5.2126" Max Deflection, Ultra Light Duty, Chromium Alloy Steel
Item #: 52377488
Brand: Associated Spring Raymond
Model #: 302-832-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2 |
| Rod Diameter (Inch) | 1 |
| Free Length (Inch) | 8 |
| Load Type | Ultra Light-Duty |
| Color | Light Green |
| Maximum Deflection Load (N) | 3376.20 |
| Maximum Deflection Load (Lb.) | 759.00 |
| Maximum Deflection (mm) | 132.40 |
| Maximum Deflection (Decimal Inch) | 5.2126 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
