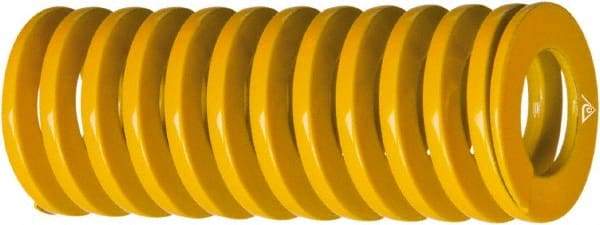

Associated Spring Raymond - 2-1/2" Hole Diam, 1-1/2" Rod Diam, 8" Free Length, Yellow Die Spring - 3686 Lb Max Deflection, 1.9154" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 52374659
Brand: Associated Spring Raymond
Model #: 306-932-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2-1/2 |
| Rod Diameter (Inch) | 1-1/2 |
| Free Length (Inch) | 8 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (N) | 16396.10 |
| Maximum Deflection Load (Lb.) | 3686.00 |
| Maximum Deflection (mm) | 48.65 |
| Maximum Deflection (Decimal Inch) | 1.9154 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
