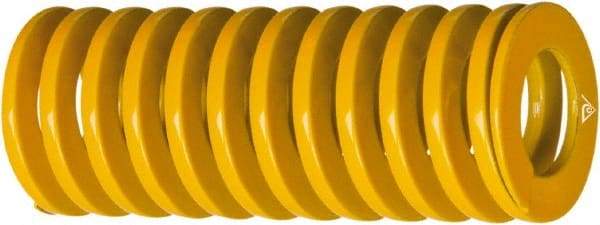

Associated Spring Raymond - 3/8" Hole Diam, 3/16" Rod Diam, 1" Free Length, Yellow Die Spring - 61 Lb Max Deflection, 0.2913" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 52371804
Brand: Associated Spring Raymond
Model #: 306-104-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 3/8 |
| Rod Diameter (Inch) | 3/16 |
| Free Length (Inch) | 1 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (N) | 271.34 |
| Maximum Deflection Load (Lb.) | 61.00 |
| Maximum Deflection (mm) | 7.40 |
| Maximum Deflection (Decimal Inch) | 0.2913 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
