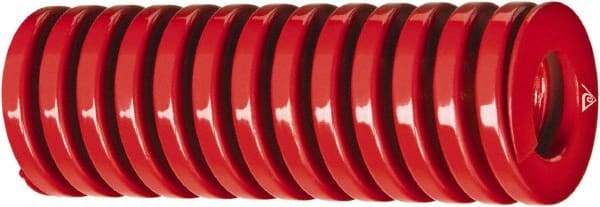

Associated Spring Raymond - 2-1/2" Hole Diam, 1-1/2" Rod Diam, 3-1/2" Free Length, Red Die Spring - 3088 Lb Max Deflection, 1.0315" Max Deflection, Heavy Duty, Chromium Alloy Steel
Item #: 52371093
Brand: Associated Spring Raymond
Model #: 305-914-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 2-1/2 |
| Rod Diameter (Inch) | 1-1/2 |
| Free Length (Inch) | 3-1/2 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (N) | 13736.10 |
| Maximum Deflection Load (Lb.) | 3088.00 |
| Maximum Deflection (mm) | 26.20 |
| Maximum Deflection (Decimal Inch) | 1.0315 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
