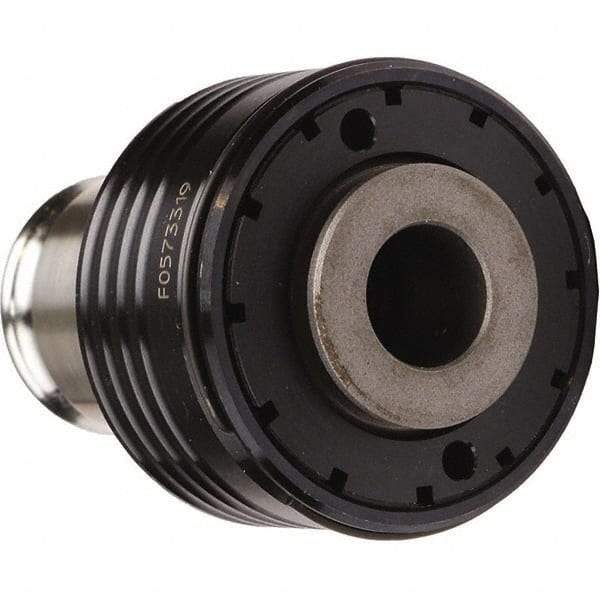

Emuge - 0.2362" Tap Shank Diam, 0.1929" Tap Square Size, #3 Tapping Adapter - 1.3386" Projection, 1-1/2" Tap Depth, 2.7165" OAL, 1.2205" Shank OD, Through Coolant, Series EM03-U
Item #: 52364148
Brand: Emuge
Model #: F0573106.2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Adapter Size | 3 |
| Tap Shank Diameter (mm) | 6.00 |
| Tap Shank Diameter (Decimal Inch) | 0.2362 |
| Tap Square Size (mm) | 4.90 |
| Tap Square Size (Decimal Inch) | 0.1929 |
| Quick Change | Yes |
| Projection (mm) | 34.00 |
| Projection (Decimal Inch) | 1.3386 |
| Tap Depth (mm) | 38.00 |
| Tap Depth (Decimal Inch) | 1.4961 |
| Series | EM03-U |
| Overall Length (mm) | 69.00 |
| Overall Length (Decimal Inch) | 2.7165 |
| Flange Diameter (mm) | 50.00 |
| Flange Diameter (Decimal Inch) | 1.9685 |
| Outside Shank Diameter (mm) | 31.00 |
| Outside Shank Diameter (Decimal Inch) | 1.2205 |
| Through Coolant | Yes |
| PSC Code | 5136 |
