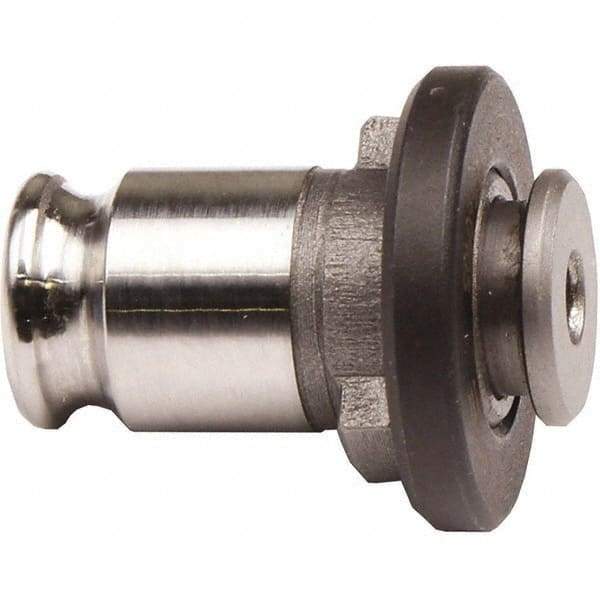

Emuge - 0.1102" Tap Shank Diam, 0.0827" Tap Square Size, #0 Tapping Adapter - 0.2756" Projection, 0.7874" Tap Depth, 1.0433" OAL, 0.5118" Shank OD, Through Coolant, Series EM00
Item #: 52363322
Brand: Emuge
Model #: F0560101
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Adapter Size | 0 |
| Tap Shank Diameter (mm) | 2.80 |
| Tap Shank Diameter (Decimal Inch) | 0.1102 |
| Tap Square Size (mm) | 2.10 |
| Tap Square Size (Decimal Inch) | 0.0827 |
| Quick Change | Yes |
| Projection (mm) | 7.00 |
| Projection (Decimal Inch) | 0.2756 |
| Tap Depth (mm) | 20.00 |
| Tap Depth (Decimal Inch) | 0.7874 |
| Series | EM00 |
| Overall Length (mm) | 26.50 |
| Overall Length (Decimal Inch) | 1.0433 |
| Flange Diameter (mm) | 23.00 |
| Flange Diameter (Decimal Inch) | 0.9055 |
| Outside Shank Diameter (mm) | 13.00 |
| Outside Shank Diameter (Decimal Inch) | 0.5118 |
| Through Coolant | Yes |
| PSC Code | 5136 |
