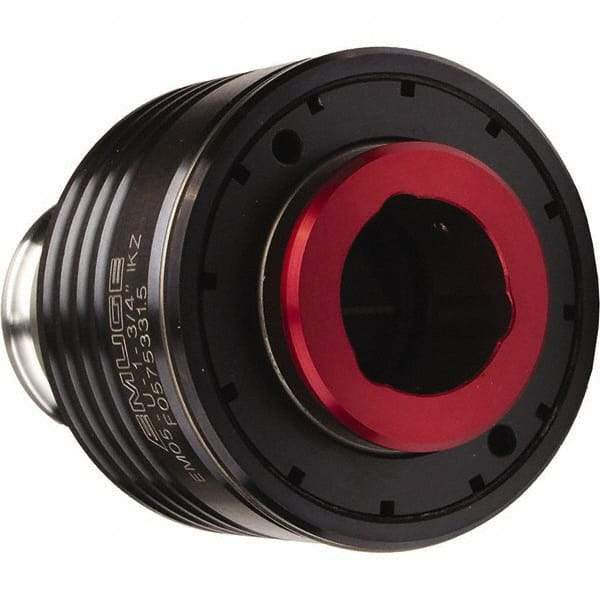

Emuge - 0.7874" Tap Shank Diam, 0.6299" Tap Square Size, #5 Tapping Adapter - 2.9528" Projection, 3.7795" Tap Depth, 5.4331" OAL, 2.3622" Shank OD, Through Coolant, Series EM05-U
Item #: 52363215
Brand: Emuge
Model #: F0575116.5
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Adapter Size | 5 |
| Tap Shank Diameter (mm) | 20.00 |
| Tap Shank Diameter (Decimal Inch) | 0.7874 |
| Tap Square Size (mm) | 16.00 |
| Tap Square Size (Decimal Inch) | 0.6299 |
| Quick Change | Yes |
| Projection (mm) | 75.00 |
| Projection (Decimal Inch) | 2.9528 |
| Tap Depth (mm) | 96.00 |
| Tap Depth (Decimal Inch) | 3.7795 |
| Series | EM05-U |
| Overall Length (mm) | 138.00 |
| Overall Length (Decimal Inch) | 5.4331 |
| Flange Diameter (mm) | 95.00 |
| Flange Diameter (Decimal Inch) | 3.7402 |
| Outside Shank Diameter (mm) | 60.00 |
| Outside Shank Diameter (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
| PSC Code | 5136 |
