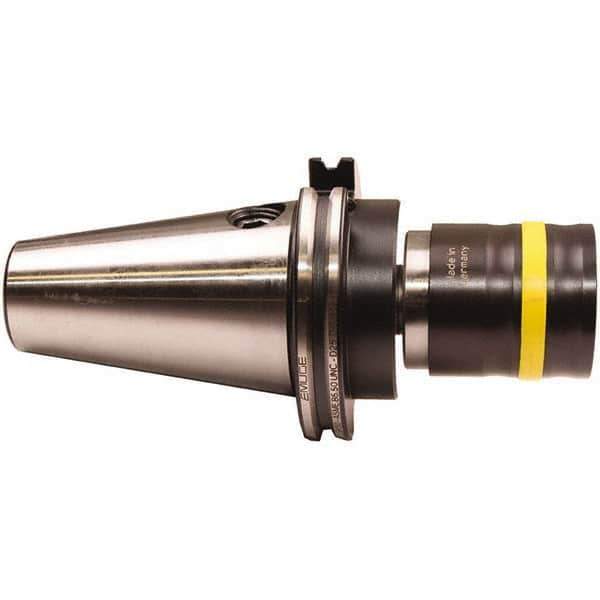

Emuge - 1-3/8 to 12 Threaded Shank Tension & Compression Tapping Chuck - M4.5 Min Tap Capacity, 2.9331" Projection, Size 3 Adapter, Quick Change
Item #: 52356557
Brand: Emuge
Model #: F3303M39
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Threaded shanks are designed with internal threads on the shank for machines that require a thread to adapt to the spindle. They are rigid and help to increase tool life.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Threaded Shank |
| Modular Connection Size | 1-3/8 - 12 |
| Minimum Tap Capacity (mm) | M4.5 |
| Projection (Decimal Inch) | 2.9331 |
| Quick Change | Yes |
| Adapter Size | 3 |
| Holder Series | KSN3 |
| Nose Diameter (Decimal Inch) | 2.0866 |
| Compression (Decimal Inch) | 0.3346 |
| Overall Length (Decimal Inch) | 7.1457 |
| Through Coolant | No |
