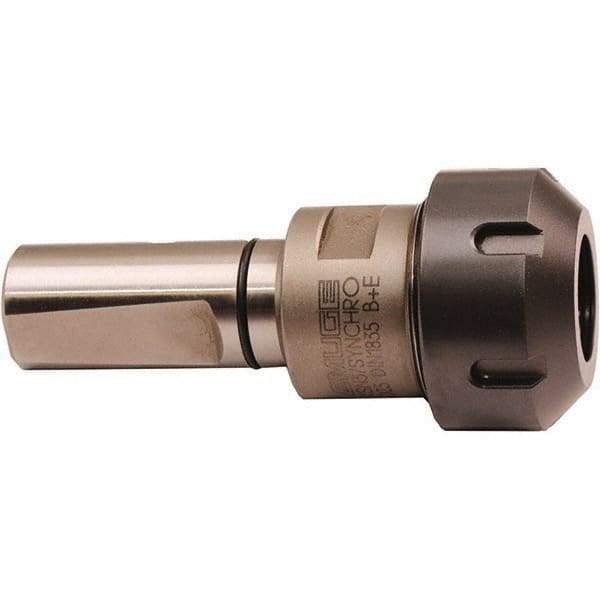

Emuge - 25mm Straight Shank Diam Rigid Tapping Adapter - M4 Min Tap Capacity, 56mm Projection, Through Coolant
Item #: 52355492
Brand: Emuge
Model #: F3133G26.1.24
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Minimum Tap Capacity (mm) | M4 |
| Projection (Decimal Inch) | 2.2047 |
| Projection (mm) | 56.00 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 4.50 |
| Minimum Collet Capacity (Decimal Inch) | 0.1772 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Maximum Collet Capacity (mm) | 16.00 |
| Collet System | ER Tap |
| Holder Series | KSN3/Synchro |
| Nose Diameter (mm) | 50.00 |
| Nose Diameter (Decimal Inch) | 1.9685 |
| Tap Depth (mm) | 29.00 |
| Overall Length (mm) | 113.00 |
| Overall Length (Decimal Inch) | 4.4488 |
| Through Coolant | Yes |
