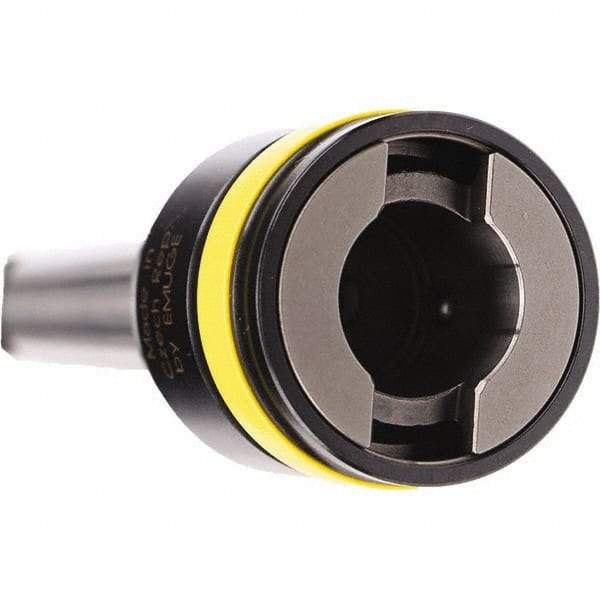

Emuge - 3MT Taper Shank Tension & Compression Tapping Chuck - M3 Min Tap Capacity, 47mm Projection, Size 1 Adapter, Quick Change
Item #: 52354214
Brand: Emuge
Model #: F3301103
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | 3MT |
| Minimum Tap Capacity (mm) | M3 |
| Projection (Decimal Inch) | 1.8504 |
| Projection (mm) | 47.00 |
| Quick Change | Yes |
| Hole Diameter (mm) | 19.00 |
| Adapter Size | 1 |
| Holder Series | KSN1 |
| Nose Diameter (mm) | 36.00 |
| Nose Diameter (Decimal Inch) | 1.4173 |
| Tension (mm) | 8.00 |
| Compression (Decimal Inch) | 0.1969 |
| Compression (mm) | 5.00 |
| Overall Length (mm) | 141.00 |
| Overall Length (Decimal Inch) | 5.5512 |
| Through Coolant | No |
