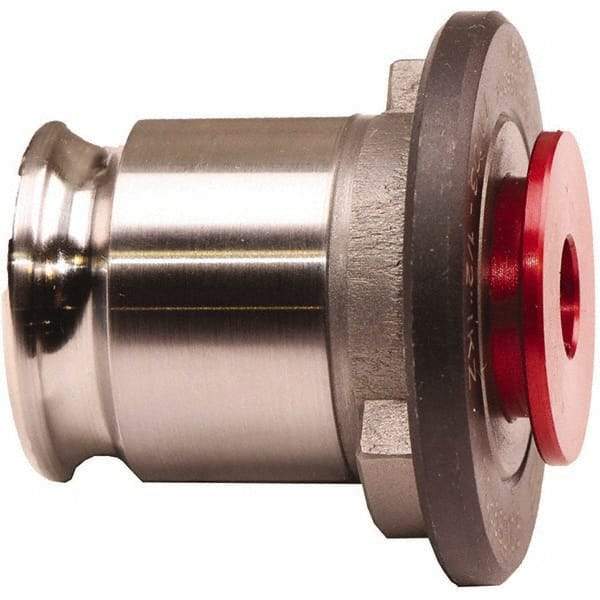

Emuge - 0.7874" Tap Shank Diam, 0.6299" Tap Square Size, #5 Tapping Adapter - 1.6535" Projection, 3.5433" Tap Depth, 4.1339" OAL, 2.3622" Shank OD, Through Coolant, Series EM05
Item #: 52353364
Brand: Emuge
Model #: F0565116.5
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Adapter Size | 5 |
| Tap Shank Diameter (mm) | 20.00 |
| Tap Shank Diameter (Decimal Inch) | 0.7874 |
| Tap Square Size (mm) | 16.00 |
| Tap Square Size (Decimal Inch) | 0.6299 |
| Quick Change | Yes |
| Projection (mm) | 42.00 |
| Projection (Decimal Inch) | 1.6535 |
| Tap Depth (mm) | 90.00 |
| Tap Depth (Decimal Inch) | 3.5433 |
| Series | EM05 |
| Overall Length (mm) | 105.00 |
| Overall Length (Decimal Inch) | 4.1339 |
| Flange Diameter (mm) | 92.00 |
| Flange Diameter (Decimal Inch) | 3.6221 |
| Outside Shank Diameter (mm) | 60.00 |
| Outside Shank Diameter (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
| PSC Code | 5136 |
