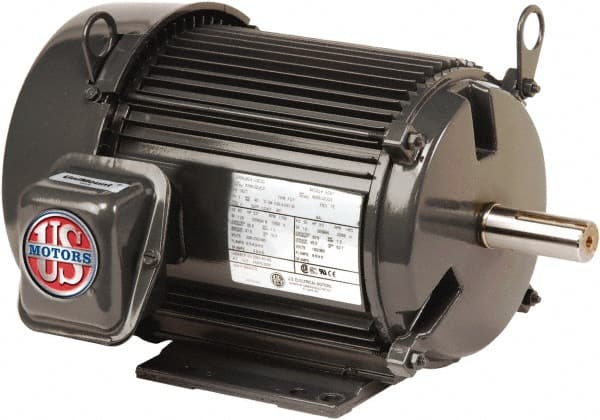

Industrial Electric AC/DC Motors; Motor Type: Three Phase Premium Efficient; Motor Type: Three Phase Premium Efficient; Type of Enclosure: TEFC; Horsepower: 7-1/2 HP; Thermal Protection Rating: None; Enclosure Style: TEFC; Name Plate RPMs: 1765, 1455; The
Item #: 51881266
Brand: US Motors
Model #: U7P2DC
Product Specifications
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 7-1/2 HP |
| Thermal Protection Rating | None |
| Enclosure Style | TEFC |
| Name Plate RPMs | 1765, 1455 |
| Voltage | 208-230/460 & 190/380 |
| Frequency Hz | 60/50 Hz; 60/50 |
| Frame Size | 213 |
| Mount Type | C-Face w/Base |
| Number of Speeds | 1 |
| Bearing Type | Double Shielded Ball |
| Application | General Equipment |
| Full Load Amperage | 20-18.2/9.1 |
| Service Factor Rating | 1.0 |
| Applications | General Equipment |
| Insulation Class | F |
| Frame Material | Aluminum |
| Service Factor Rating | 1 |
| PSC Code | 6105 |
