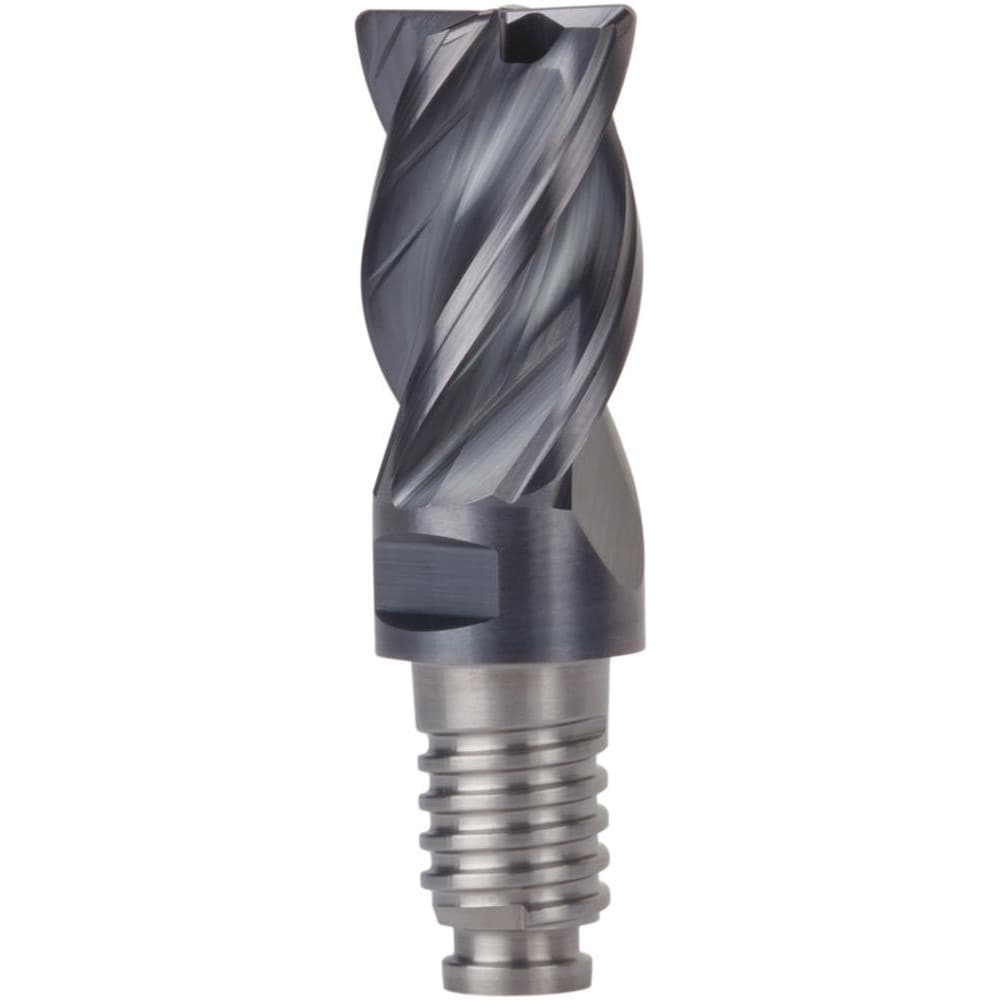

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 32.00; Length of Cut (mm): 48.0000; Number Of Flutes: 4
Item #: 84772540
Brand: Kennametal
Model #: 7136492
Product Specifications
| Mill Diameter (mm) | 32.00 |
| Length of Cut (mm) | 48.0000 |
| Number Of Flutes | 4 |
| Overall Length (mm) | 112.2000 |
| Corner Radius (mm) | 1.00 |
| Coating/Finish | AlTiN |
| End Mill Material | Carbide |
| Corner Radius (Decimal Inch) | 0.0394 |
| Overall Length (Decimal Inch) | 4.4173 |
| Mill Diameter (Decimal Inch) | 1.2598 |
| Centercutting | Yes |
| Connection Type | Duo-Lock 32 |
| Flute Type | Variable |
| Minimum Helix Angle | 36 |
| Maximum Helix Angle | 39 |
| Series | Duo-Lock Harvi I TE |
| Helix Angle | 36 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | No |
| Variable Helix | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.8898 |
| Variable Index | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
