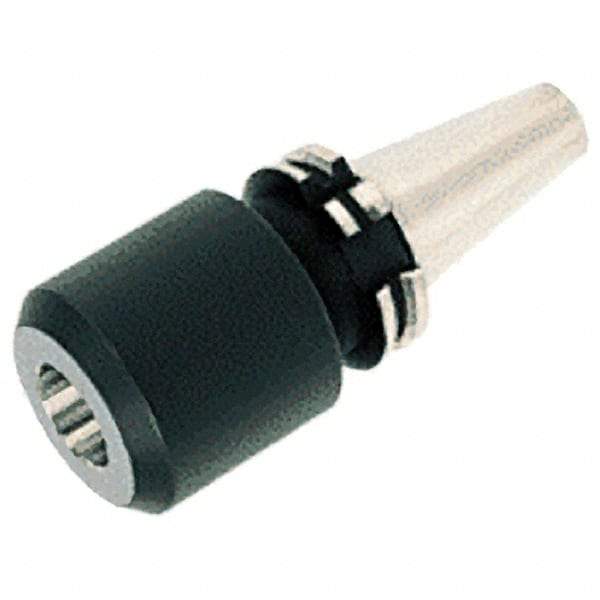

Iscar - DIN69871-50 Taper, 0.3937" Inside Hole Diam, 1.7284" Projection, Taper Adapter - 1.378" Body Diam, Taper Shank, Through Coolant
Item #: 50100569
Brand: Iscar
Model #: 4535035
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Type | Taper Adapter |
| Taper Size | DIN69871-50 |
| Inside Hole Diameter (mm) | 10.00 |
| Inside Hole Diameter (Decimal Inch) | 0.3937 |
| Projection (mm) | 43.9 |
| Body Diameter (mm) | 35.00 |
| Body Diameter (Decimal Inch) | 1.3780 |
| Projection (Decimal Inch) | 1.7284 |
| Overall Length (mm) | 164.75 |
| Overall Length (Decimal Inch) | 6.4862 |
| Through Coolant | Yes |
| Drawbar Thread Size | M24 |
