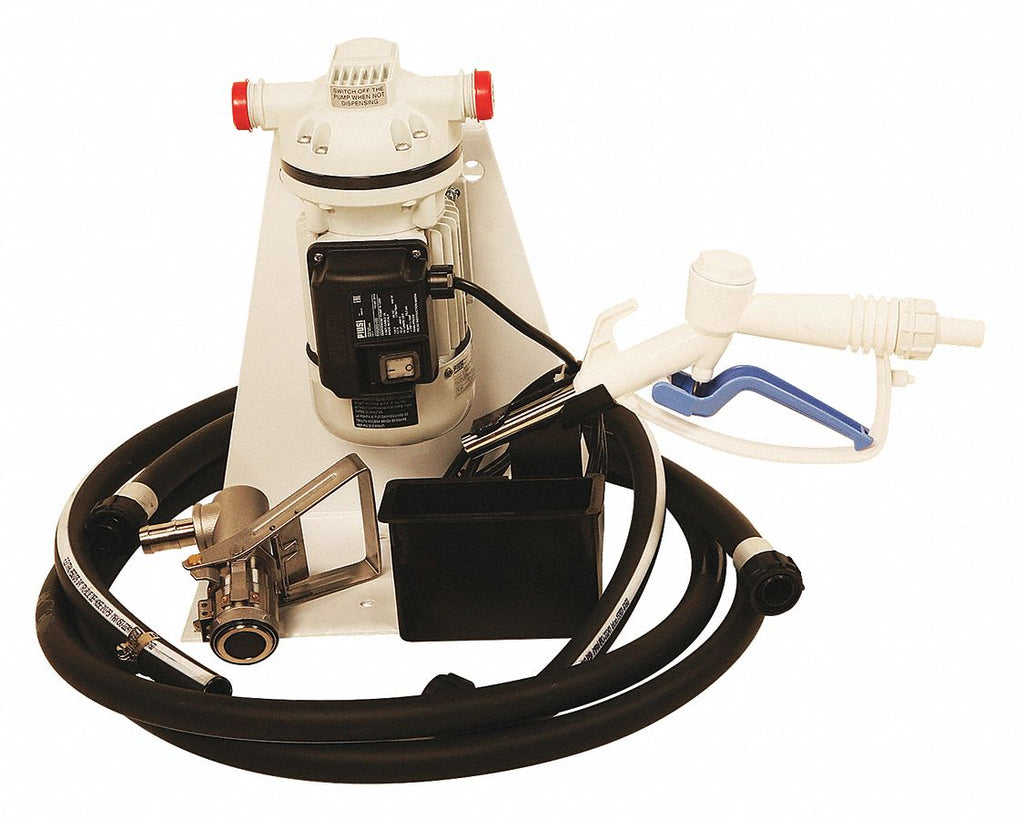

1/10HP Polypropylene DEF Transfer Pump, 8 GPM
Item #: 49NT49
Brand: LIQUIDYNAMICS INC.
Supplier #: DS15H12XMPXXRSV
Exact Tooling IR#: 08
| Product Specifications | |
|---|---|
| Item | DEF Transfer Pump |
| Voltage | 115VAC |
| Hz | 60 |
| Phase | 1 |
| HP | 1/10 |
| Motor Enclosure | Totally Enclosed Fan-Cooled |
| Motor Type | AC |
| Housing Material | Polypropylene |
| Wetted Materials | EPDM, Stainless Steel, Polypropylene |
| Hose Material | Peroxide Cured EPDM |
| For Use With | Diesel Exhaust Fluid, Anti-Freeze, Clean Water |
| GPM | 8 |
| Max. Pressure | 33 psi |
| Max. Viscosity | 18 cps |
| Max. GPM for Water | 8 |
| Inlet Size | 3/4" |
| Outlet Size | 3/4" Barb |
| Hose Length | 12 ft. |
| Metered | No |
| Adapter Type | RSV |
| Adapter Material | 316 Stainless Steel |
| Agency Compliance | IP 55, ISO 222241 |
| Manufacturers Warranty Length | 12 yr. Pump, 1 yr. Dispensing System |
| Includes | Side Mount Hanger, Nozzle, Hose, Nozzle Hanger, Drip Cup, Coupler |
| Duty | Intermittent |
| Features | Dispenses 8 gpm |
| Max. Head | 48 ft. |
| Max. Liquid Temp. | 104 Degrees F |
| Self-Priming | Yes |
| Seal Material | EPDM |
| Nozzle Material | Polypropylene, Stainless Steel |
| Duty Cycle | 6 min. to 11 Min. |
| Cord Length | 6 ft. |
| Overall Length | 20" |
| pH Range | 5.0 to 10 |
| Application | Diesel Exhaust Fluid, Anti-Freeze, Clean Water |
| Max. Temp. | 104 Degrees F |
| Pump Body Material | Polypropylene |
| Gasket Material | EPDM |
| UNSPSC # | 40151532 |
| Country of Origin | USA |
