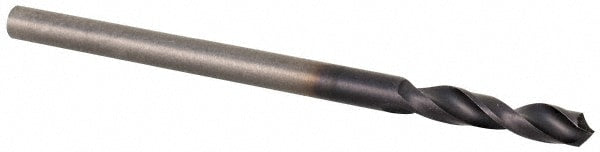

Screw Machine Length Drill Bit: 0.0866" Dia, 118 deg Point, Solid Carbide
Item #: 93348126
Brand: Guhring
Model #: 9024630022000
Product Specifications
| Drill Bit Size (mm) | 2.20 |
| Drill Bit Size (Decimal Inch) | 0.0866 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Point Type | 4 Facet |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.0866 |
| Overall Length (mm) | 40.00 |
| Overall Length (Decimal Inch) | 1.5748 |
| Series | 2463 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Proprietary Coating/Finish | FIREX |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.3820 |
| Maximum Drilling Depth (mm) | 9.70 |
| Shank Length (Decimal Inch) | 1.0630 |
| Shank Length (mm) | 27.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | +0.000 to -0.010 mm |
| Standards | DIN 6539 |
| Flute Length (mm) | 13.00 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Specification Number | DIN 6539 |
| Specification Designation | DIN |
| Material Grade | Submicron |
| UNSPSC Code | 23241635 |
| Country of Origin | Germany |
