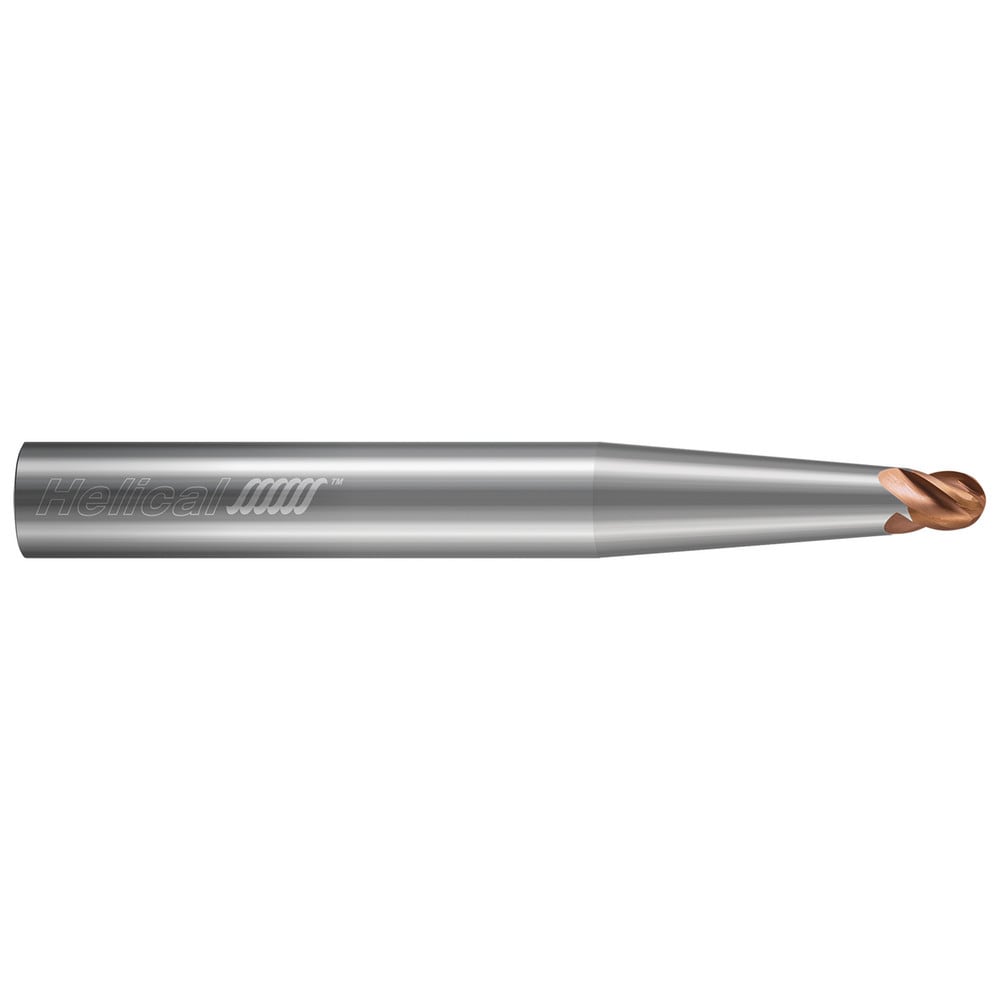

Brand: Helical Solutions / Part #: 86471
Item #: 75590968
Brand: Helical Solutions
Model #: 86471
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Length of Cut (Inch) | 1/2 |
| Taper Angle Per Side | 5.00 |
| End Mill Material | Solid Carbide |
| End Shape | Ball |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Small End Diameter (Decimal Inch) | 0.3750 |
| Small End Diameter (Inch) | 3/8 |
| Flute Direction | Right Hand |
| Series | End Mills for Stainless & High Temp - Contour Finishers - 4 Flute - Ball - Tapered Neck |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5000 |
| Coolant Through | No |
| Coating/Finish | Tplus |
| Number Of Flutes | 4 |
| Included Angle Degree | 10 |
