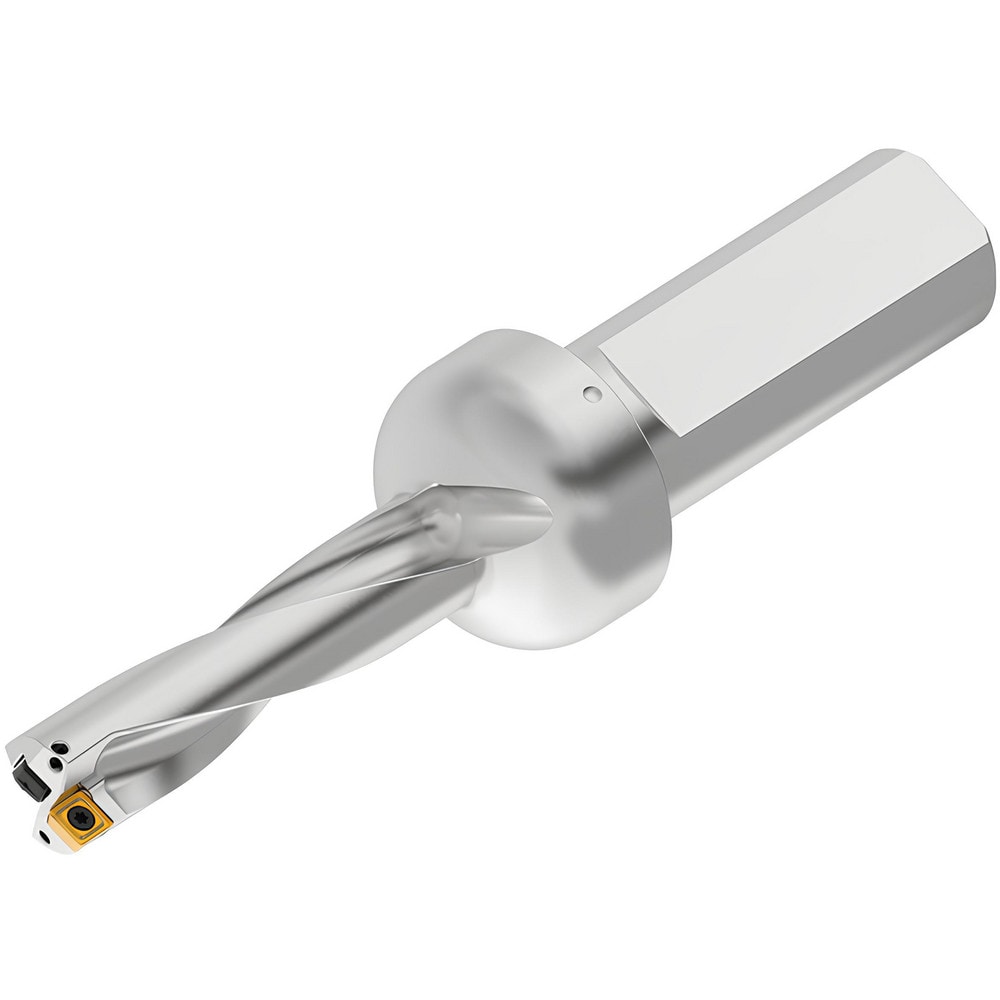

Indexable Insert Drill: DFPR135R4WB20M, 14.00 mm Max Dia, 54.00 mm Max Depth, 4xD, 20.00 mm Shank Dia
Item #: 02193357
Brand: Kennametal
Model #: 7034816
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 14.00 |
| Maximum Drill Depth (mm) | 54.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 20.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 040204; 040203 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | DFPR |
| Flute Length (mm) | 54.00 |
| Body Length | 74.00 |
| Shank Length (mm) | 50.00 |
| Coolant Hole Thread Size | "1/8-27 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 4.6x2; 4.57x3.81 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR040203__I; DFPR040204__O |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
| Insert Lock Screw | M1.8-0.35x3.8T5 |
| Coolant Through | Yes |
