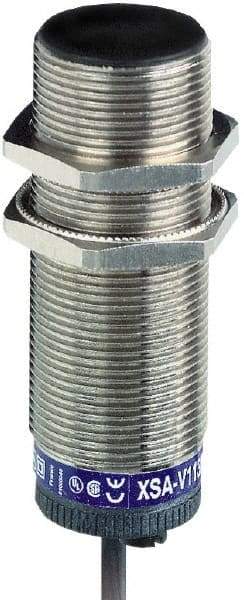

Telemecanique Sensors - PNP, NC, 10mm Detection, Cylinder, Inductive Proximity Sensor - 3 Wires, IP67, 12 to 48 VDC, M30x1.5 Thread, 81mm Long
Item #: 49915531
Brand: Telemecanique Sensors
Model #: XSAV11373
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NC |
| Output Type | PNP |
| Connector Type | Cable |
| Number of Wires | 3 |
| Detection Distance (mm) | 10.00 |
| Maximum Voltage | 12-48 VDC |
| Ingress Protection Rating | IP67 |
| Maximum Load Capacity (mA) | 200 |
| Response Frequency (Hz) | 100 |
| Thread Size | M30x1.5 |
| Housing Material | Brass |
| Overall Length (mm) | 81 |
| Standards Met | CCC; CSA; IEC 60529; RoHS Compliant; UL |
