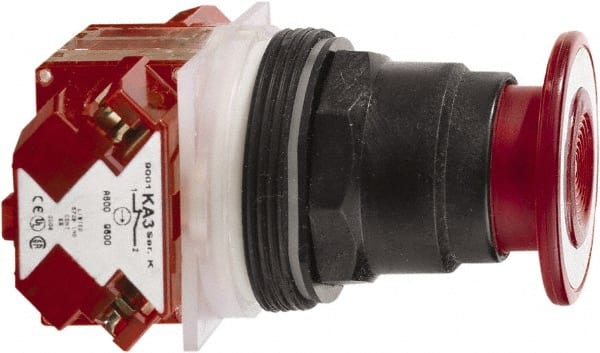

Square D - 1.22 Inch Mount Hole, Extended Mushroom Head, Pushbutton Switch with Contact Block
Item #: 49863749
Brand: Square D
Model #: 9001SKR8R05H25
Product Specifications
| Mounting Hole Diameter (mm) | 31 |
| Mounting Hole Diameter (Decimal Inch) | 1.2200 |
| Switch Type | Pushbutton Switches with Contact Blocks |
| Pushbutton Type | Extended (Mushroom Head) |
| Pushbutton Shape | Round |
| Pushbutton Color | Red |
| Operator Illumination | NonIlluminated |
| Operation Type | Maintained (MA) Neutral; Momentary (MO) Pull/Push |
| Switch Sequence | On-None-Off |
| Pushbutton Material | Acetal |
| Voltage | 600 VAC/VDC |
| Contact Configuration | NC (Late Open)/NC |
| Terminal Type | Screw Clamp |
| NEMA Rating | 1; 2; 3; 4; 12; 13; 3R |
| Resistance Features | Anti-Corrosive; Dust-tight; Oiltight; Shock Resistant; Vibration Resistant; Watertight |
| Standards Met | CE Marked; CSA C22.2; CSA File No. LR25490 Class 3211 03; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; JIS C 4520; JIS C 852; RoHS Compliant; UL 508; UL File No. E42259 CCN NKCR; UL File No. E78403 CCN NKCR |
