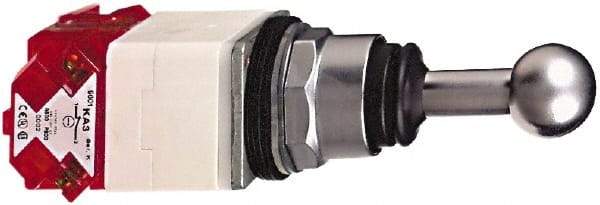

Schneider Electric - 5 Position, 10 Amp, -13 to 158°F, Knob Handle, Momentary (MO) Joystick Switch - 1.77 Inch High x 5.99 Inch Deep x 1.97 Inch Wide, 125 VDC and 240 VAC, Panel Mount, IP66, 1.2 Inch Mount Hole Diameter, 2NC/2NO
Item #: 49802499
Brand: Schneider Electric
Model #: 9001K34H2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Switch Type | Switch |
| Mounting Hole Diameter (mm) | 30 |
| Mounting Hole Diameter (Decimal Inch) | 1.2000 |
| Operation Type | Momentary (MO) |
| Contact Configuration | 2NC/2NO |
| Number of Operator Positions | 5 |
| Joystick Handle Shape | Knob |
| Terminal Type | Screw Clamp |
| Amperage | 10 |
| Voltage | 125 VDC; 240 VAC |
| Mounting Type | Panel Mount |
| NEMA Rating | 4; 13 |
| Ingress Protection Rating | IP66 |
| Contact Plating | Silver Alloy |
| Bezel Material | Chromium Metal |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Overall Width (mm) | 50 |
| Overall Width (Decimal Inch) | 1.9700 |
| Overall Height (mm) | 45 |
| Overall Height (Decimal Inch) | 1.7700 |
| Overall Depth (mm) | 152 |
| Overall Depth (Decimal Inch) | 5.9900 |
| Standards Met | CE Marked; CSA C22.2 No. 14; CSA File No. LR25490 Class 3211 03; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; JIS C 4520; JIS C 852; RoHS Compliant; UL 508; UL File No. E78403; UL File No. E78403 CCN NKCR |
